Add to Cart
| Structure | Slant Bed Lathe |
| X Travel | 560mm |
| Max Swing Diameter | 650mm |
| Condition | New |
| Spindle Nose | A2-6 |
| Spindle Head Connection | C6 |
| Package | Export standard wooden case |
| Dimension | 2920*1680*2070mm |
| Function | Machining Metal |
| CNC Power | Three-phase 380V 50Hz |
| Repeatability Accuracy | ±0.003mm |
| Over Bed | 650mm |
| Key Selling Points | High Safety Level |
| Chuck Size | 10 inch |

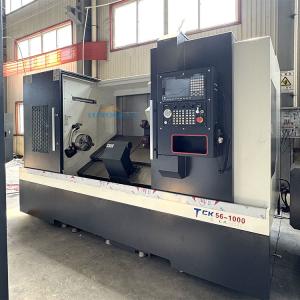

| Specifications | Units | TCK56x750 |
|---|---|---|
| Max.swing over bed | mm | 560 |
| Max. Processing length | mm | 750 |
| Cross slide length | mm | 1000 |
| Lathe bed structure | 45° integral inclined lathe | |
| Spindle nose | A2-6 | |
| Spindle (C axis) speed range | R/min | 50-3500 |
| Spindle bore | mm | 66mm |
| Bar capacity | mm | 75mm |
| Spindle (C Axis) motor | kw | 11 |
| Milling head | 12 station driven turret | |
| Milling head power | kw | 2.3 |
| Milling head speed | R/min | 6000 |
| X axis travel | mm | 340 |
| Z axis travel | mm | 1000 |
| Y axis travel | mm | 100 |
| Turret type | 12 station driven turret | |
| X rapid traverse | Mm/min | 24000 |
| Z rapid traverse | Mm/min | 24000 |
| Y rapid traverse | Mm/min | 15000 |
| X/Z axis positioning accuracy | mm | 0.006 |
| X/Z axis repositioning accuracy | mm | 0.015 |
| Spindle (C axis) dividing positioning accuracy | mm | 0.02''(70 arc-second) |
| Spindle (C axis) dividing repositioning accuracy | mm | 0.006''(20 arc-second) |
| Machine dimension(LxWxH) | mm | 3400x2060x2100 |
| Net weight | Kg | 4200/4500 |
