| Max machining diameter | 20mm |
| Stroke | 250mm |
| Main Spindle RPM | 10000rpm |
| Sub Spindle RPM | 8000rpm |
| Cross Driven Tools | 5000rpm |
| Spindle motor | 2.2/3.7 kw |
| Sub Spindle motor | 1.5/2.2kw |

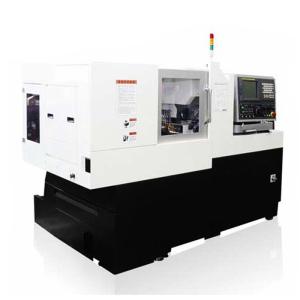

This high-precision Swiss Type CNC lathe machine features a Fanuc controller system and is designed for processing complex-shaped shafts with exceptional accuracy. Ideal for industries including aviation, aerospace, automotive, electronics, and precision engineering.
| Processing Capacity | ||
|---|---|---|
| Max machining diameter | mm | ￠20 |
| Stroke | mm | 250 |
| Main Spindle RPM | rpm | 10000 |
| Sub Spindle RPM | rpm | 8000 |
| Cross Driven Tools | rpm | 5000 |
| Number of Tools | ||
| O.D Tools | ea | 6 |
| Front Work Tools | ea | 5 |
| Cross Driven Tools | ea | 4 |
| Motors | ||
| Spindle motor | kw | 2.2/3.7 |
| Sub Spindle motor | kw | 1.5/2.2 |
| Dimensions | ||
| Floor space (L×W×H) | mm | 2610×1530×1674 |
| Machine weight | kg | 3600 |
| Component | Brand | Origin |
|---|---|---|
| Screw | THK | Japan |
| Guide | THK | Japan |
| Lead screw bearing | NSK | Japan |
| Spindle bearing | NSK | Japan |
| Control system | FANUC | Japan |
| Servo motor | FANUC | Japan |
