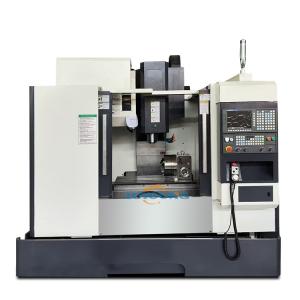

The VMC850 Vertical Machining Center offers exceptional precision and performance for metal processing applications. Featuring a BT40 spindle and available in 3, 4, or 5-axis configurations, this machine delivers high-speed machining with outstanding accuracy.

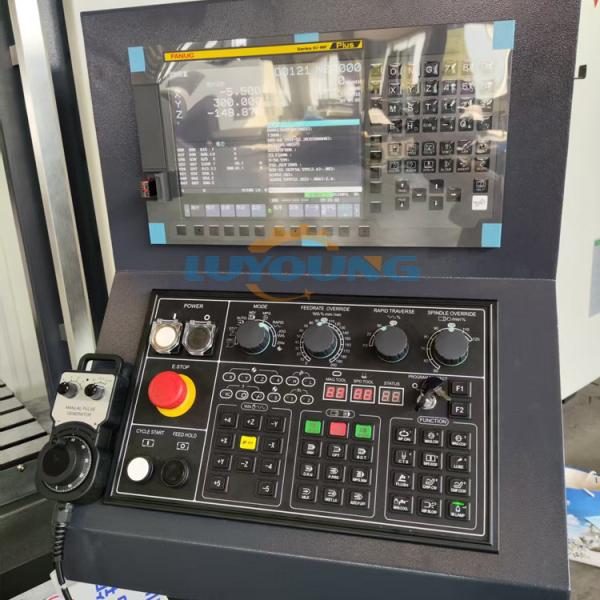

| Controller | FANUC-Siemens/GSK CNC Controller |
| Spindle Speed | 10000mm/min |
| Year | 2024 |
| X Travel | 800mm |
| Application | Metal Processing |
| Machining Capacity | Light Duty |
| Table Size | 1000×500mm |
| Spindle Speed Range | 10,000 rpm |

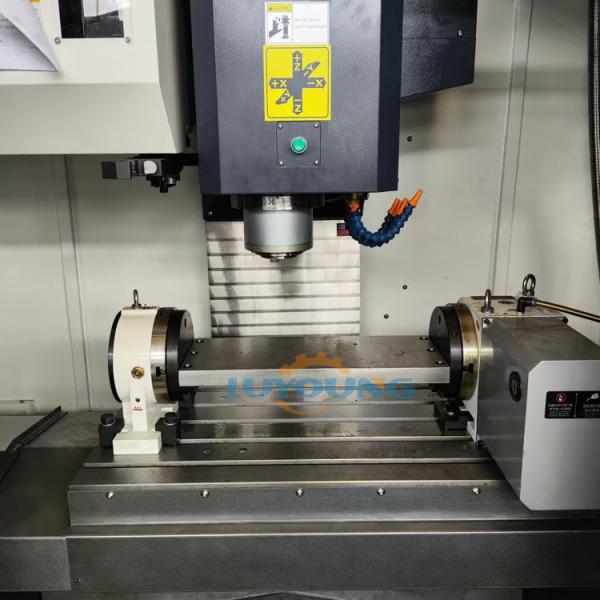

| Number Of Axes | 3/4/5 |
| After Warranty Service | Online support |
| Size of worktable (length×width) | 1000×500 mm |
| T slot | 5-18x100 mm |
| Max loading weight on worktable | 600kg |
| X-Axis travel | 800 mm |
| Y-Axis travel | 550 mm |
| Z-Axis travel | 500 mm |
| Distance between spindle nose and table | 105-605 mm |
| Distance between spindle center and column | 550 mm |
| Spindle taper | BT40 |
| Max. spindle speed | 8000/10000/12000 rpm |
| Spindle motor power | 7.5/11 kW |
| Rapid feeding speed (X,Y,Z axis) | 24/24/24 m/min (linear guideway) |
| Fast cutting speed | 10 m/min |
| Positional accuracy | ±0.005 mm |
| Repeat positional accuracy | ±0.003 mm |
| Auto Tool changer type | 24 arm type auto tool changer |
| Max. tool length | 300 mm |
| Max. Tool diameter | Φ80 (adjacent tool)/φ150 (not adjacent tool) |
| Max.tool weight | 8 kg |
| Tool changing time (tool-to-tool) | 2.5 sec |
| Air pressure | 0.6 Mpa |
| Machine weight | 5500 KG |
| Overall size | 2600×2300×2300 mm |
